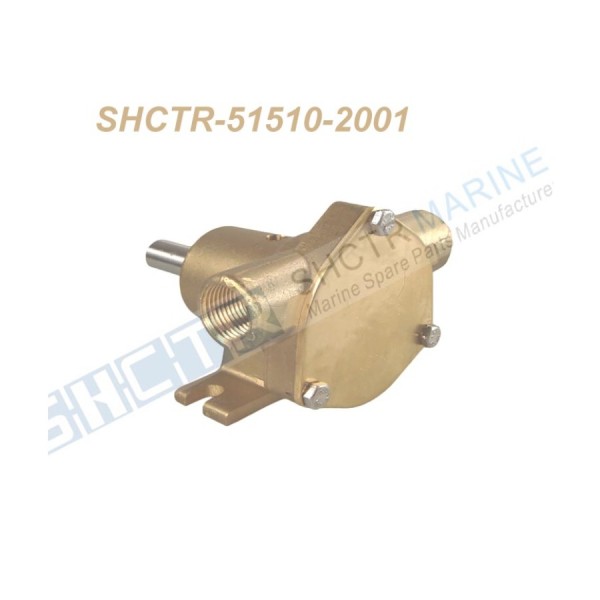

SHCTR-51510-2001

Overview

This pump replaces Jabsco water pump G1010

Features

• 3/8" bronze pump
• 10-size
• foot-mounted with BSP threaded ports Connections: 3/8" BSP Ports Dimensions: 92mm long
• 80mm wide
• 50mm to port center. Ø12mm Shaft Output: Nominal 10l/min at 3m head @ 1500rpm Mechanical shaft seal
• Carbon/Ceramic Mechanical
• extends service life. O' Ring end cover seal Sealed-for-life ball bearing Interchangeable with previous 52010 series Suitable for direct or pulley drive Self-priming from dry up to 1.5m Packaged Dimensions: L:16.00 x H:11.00 x W:11.00cm Actual Weight: 0.74 Kg (Approx. 0.99 Kg packed) 22 Litres/min (5.8 gallons/min) at 3000 RPM Impeller: Neoprene 22405-0001 Shaft: Stainless Steel 12mm APPLICATIONS / CHARACTERISTICS Marine: Engine Cooling
• Bilge Pumping
• Water Circulation. Industrial: Circulating and Transferring
• Velocity Mixing. Farming: Pumping Water for Stock
• Liquid Ballast Transfer. Constructed from marine quality bronze and stainless steel for ruggedness and reliability. Easy to service and maintain. Inexpensive to buy and operate. Will tolerate abrasive wear. Handles hard and soft solids without clogging. Can pump in either direction. Will not airlock. Self-priming from dry up to 1.5m (4.9ft)
