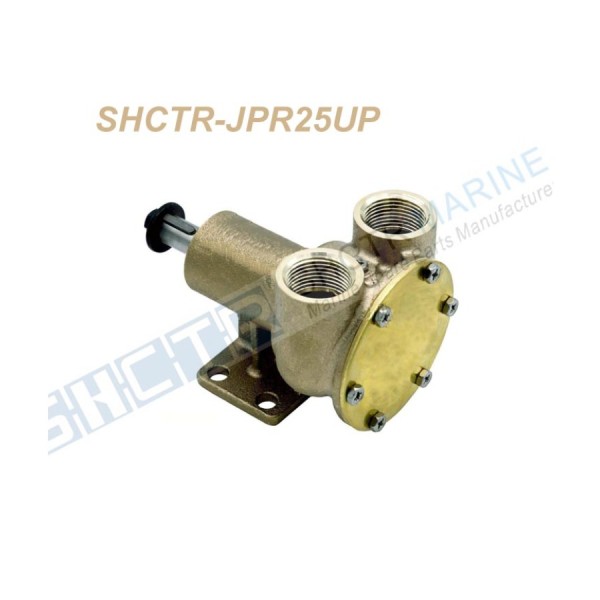

SHCTR-JPR25UP Hover to zoom
Marine Part

SHCTR-JPR25UP

$177.66
SKU / SHCTR PNSHCTR-JPR25UP
BrandJMP
Primary ReplacesJPR-25UP
InstallCheck fitment
Request Fit Check
Email Us WhatsApp WeChat Cross Reference
Need another repair level? Impeller Repair Kit Complete Pump

Specifications

Brand JMP
Replaces JPR-25UP
KEY Drive Serration
Blade number 6
OEM part number JPR-25UP
SHCTR number K-112
Weight 3.18 kg / 7 lb

Product Description

Overview

This pump replaces 1" NPT General Multi-Purpose Fluid Pump #JPR-25UP Port Size:1" NPT Port Type: Pipe Body: Bronze Impeller p/n: 7400-01 SHCTR-K-112 Shaft Material / Diameter: Stainless Steel / 17mm Shaft Seal: Mechanical Seal Flow (1800rpm): 106 Liter/Min Size (L x W x H): 158mm x 103mm x 112mm Weight (Approx): 7.0 lbs (3.18 kgs) Service Kit (*Sold Separately): JSK0001 Product

Features

  • Strong Bronze Body Long Life Mechanical Seal High Performance and Long Life Flexible Impeller Designed with Easy Replacement of Spare Parts O-Ring Seals at Endcover (Impeller Cover) Instead of a Gasket Applications: Marine & Sewage Treatment Industrial (ie. Cleaning Solutions
  • Bottling Systems) Agricultural / Farming Public Utilities and Municipalities
